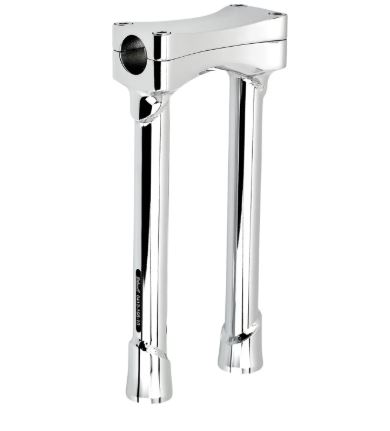

BILTWELL RISER MURDOCK O/S CHR 10″

BILTWELL RISER MURDOCK O/S CHR 10″

• 06021115 / 6413-105-10

• nvestment-cast one-piece steel bar clamp accepts 1-1/8″ O.D. handlebars
• 0.120″ (3 mm) wall x 1″ O.D. 4130 chromoly uprights
• CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware

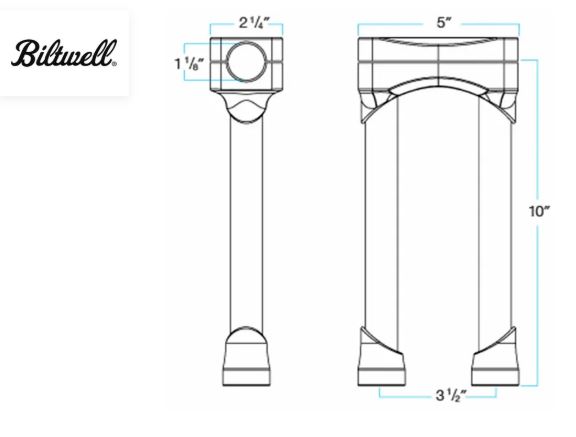

• Mounting holes on 3.5″ centers to fit most stock and select aftermarket H-D fork trees
• Pullback Murdock risers feature mandrel-bent uprights for two inches of rearward bar offset—perfect for reducing reach for shorter riders
• TIG welded and hand polished before polishing
• Stainless-steel 5/16-18 t.p.i. bar clamp hardware
• Clamping Diameter
  28,6 mm (1-1/8″)
• Rise
  25,5 cm (10″)
• Pullback
  0 mm (0″)
